High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh
High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

Large Image :  High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: QIJIE
Certification: CE,SGS,ISO
Model Number: SW-004
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meters
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 3000 m2/month
Contact Now
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Rope Mesh, Ferrule Type Or Knotted Type
Application: Protecting Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Steel Wire Rope Mesh
Processing Service: Weave Raw Material: Stainless Steel 304 316, Galvanized Wire
Accessories: All Could Be Provided
Highlight:

Flexible Stainless Steel Wire Rope Mesh

,

High Quality stainless steel cable mesh

High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

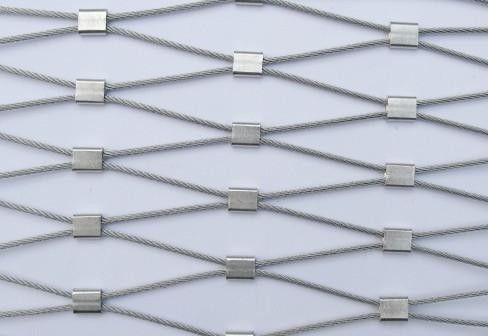

The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201.304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh
High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh
High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

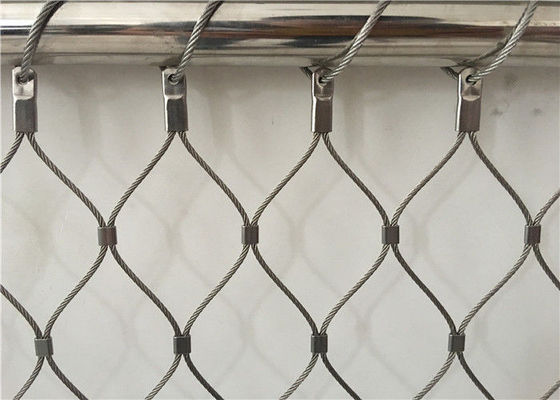

Buckle type

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.

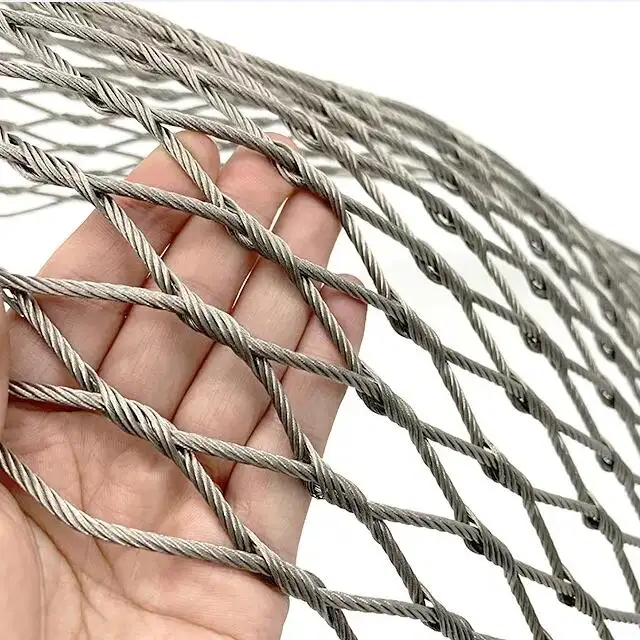

Woven type

The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals
Specification
model
Steel wire mesh structure
Breaking force (KN)
Wire rope diameter (mm)
Mesh size (mm)
BN32120
7*19
7.38
3.2
120*208
BN2470
7*7
4.18
2.4
70*102
BN20100
7*7
3.17
2.0
100*173
BN1680
7*7
2.17
1.6
80*140

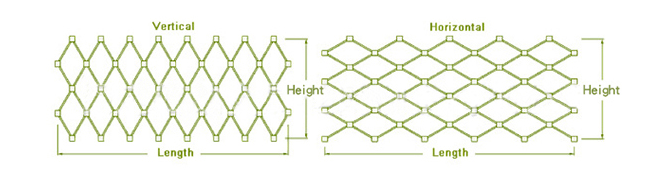

Mesh Direction
High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh
60°=stand mesn angle
90°=stand mesn angle

W=mesh aperture
H=mesh aperture height

steel wire twisted into rope It is formed by tightening a plurality of rope strands around the rope core

High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh 3

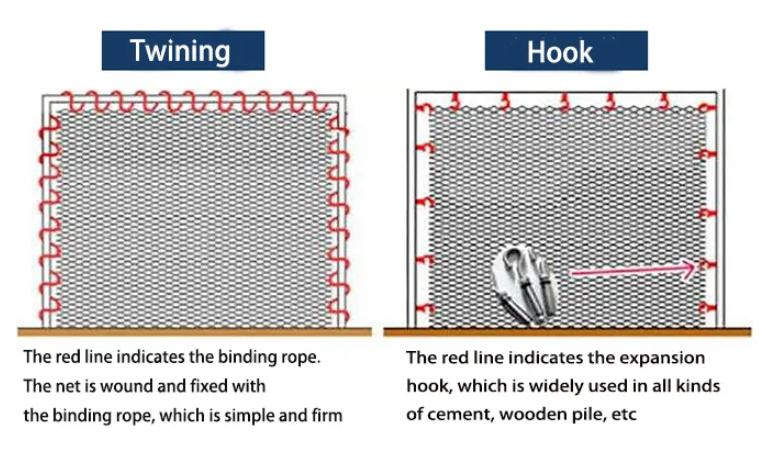

Installation diagram
High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

Tag:

1.2Mm Stainless Steel Rope Mesh,

316L stainless steel rope mesh,

7x7 stainless steel rope mesh
