Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 100-200kg |
|---|---|---|---|
| Warranty: | 1 Year | Wire Diameter: | 2.2-3.5mm,2.5-6mm |
| Color: | Can Be Customized | Application: | Chain Link Fence |
| Length: | 30m | Material: | Galvanized Wire |
| Mesh Size: | 2-6mm | Power: | 2.2KW |
| Speed: | 50-100m/min | Type: | Wire Mesh Machine |
| Voltage: | 220V | Weaving Method: | Plain Weave |
| Width: | 1-2m | Wire Diameter: | 1-3mm |
| Highlight: | double wire diamond mesh machine,chain link fence diamond mesh machine,diamond automatic wire mesh welding machine |
||

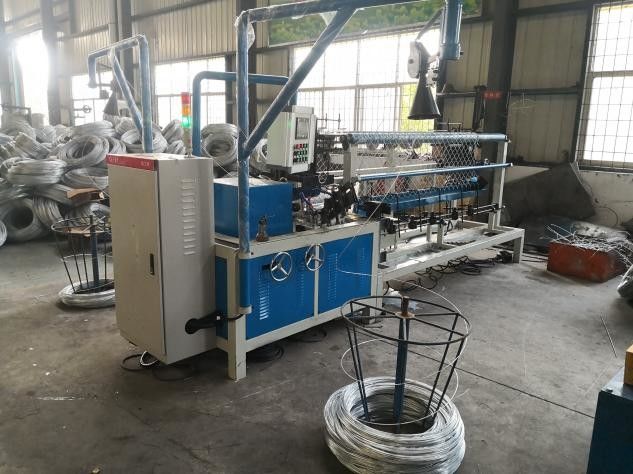

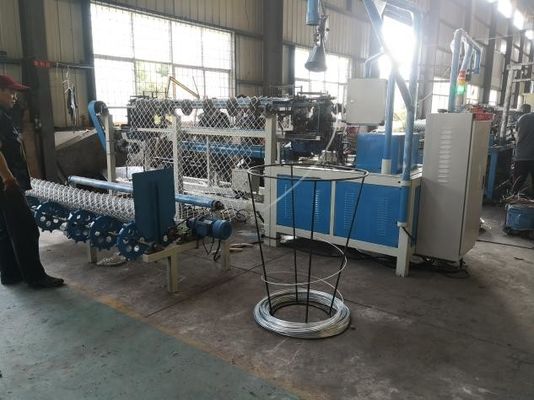

Double Wire Automatic Diamond Mesh Machine
Model: DMS-4000
wire diameter: 2.0-4.0mm
Knitting width: 600-4000mm (adjustable within the range)
Motor power: 5.5KW/1 set (servo motor), 2.2KW/1 set, 0.75KW/3 sets, 0.12KW/1 set
hole diameter: 2.5cm-10cm (change mold within the range)
Production efficiency: 40-200 square meters/hour
Machine weight: 1.5T
Dimensions: host: 2000*1000*2100mm
Mesh threading machine: 4900*1000*1700mm
Winding machine: 4800*1000*600mm
Accessories: 1 set of molds,
Description :
It is suitable for high quality low-carbon wire, galvanized wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire, pvc coated wire etc.
Advantage:
1. PLC control
2. Material feeding by servo motor
3. Single die single spiral
4. Automatically weaving mesh
5. The chain link fence is automatically wind to form rolls when the desired length is manufactured.
6. Fence side can be twisted or knuckled as required
Basic technical parameter:
| Feeding No, | Single wire |
| Wire Diameter(MM) | 1.2-4.0 (PVC coated wire :2.8~5.0mm) |
| Mesh Size(MM) | 20*20-100* 100 |
| Net Width(MM) | 3000mm |
| Rated Voltage | 380V,50HZ 3phrase ±10% |
| Speed(m2/h) | 80-160 ㎡/hour |
| Motor power | 6.0 kw |
| Weight | 2.5t |
|
Dimension |
4700*850* 1600mm 4500* 1000* 1500mm 3800* 1400* 1400mm |
|
Electricity |
The machine is controlled by PLC automatic controller system. PLC+Touch screen brand: Mitsubishi Servo motor brand: INVT |
| Delivery time | 30days after receive your deposit |
| Payment terms | 30% TT in Advance , and balance 70% pay after inspection of the machines and before loading. |
| Warranty | 12 months after the machine is accept by the buyer., we will provide the technical support for life-long. |
Composition of whole production line
| Items | Name of each parts | QTY |
| 1 | Main wire netting machine | 1 Set |
| 2 | Electric Control Cabinet | 1 Set |
| 3 | Wire pay off stand | 1 pieces |
