| Surface Treatment: | Hot Dipped Galvanized | Dimention: | 1 X 1 X 1 Meters / 2 X 1 X 1 Meters |
|---|---|---|---|
| Wire Diameter: | 4mm | Mesh Openning: | 50 X 100 Mm , 100 X 100 Mm |
| Loading: | 50pieces Per Pallet | Material: | Low-Carbon Iron Wire |
| Application: | Gabions,Construction Wire Mesh,Garden,Fence,Shore Protection | Type: | Welded Mesh,Perforated Mesh,gabion |
| Product Name: | Gabion Basket,flood Retaining Wall Control Welded Gabion Box Basket,Factory Supply Gabion Mesh,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion | ||
| Highlight: | 1 x 1 x 1 meters galvanized gabion box,hexagonal hot dipped galvanized gabion box,50 x 50 mm hexagonal gabion wire mesh |
||
Leadwalking Hexagonal Gabion Box Mesh 2.0-4.0mm Wire PVC Coated/Galvanized Hexagonal Wire Netting/Mesh China Heavy-Duty Plastic-Coated Hexagonal Mesh

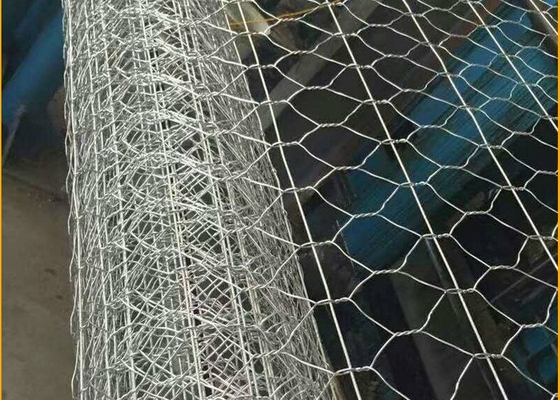

Gabion Box are wire containers made of hexagonal wire netting Wire diameter varies with the hexagonal nettings. For hexagonal wire netting without pvc coating, the wire diameter ranges from 2. 0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.5mm. The wire of the outside frame edge is one wire gaueg thicker than the wire used for hexagonal wire netting.
Gabions are mainly made of four types of materials:
(1) Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.
(2) Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.
(3) Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.
(4) Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.

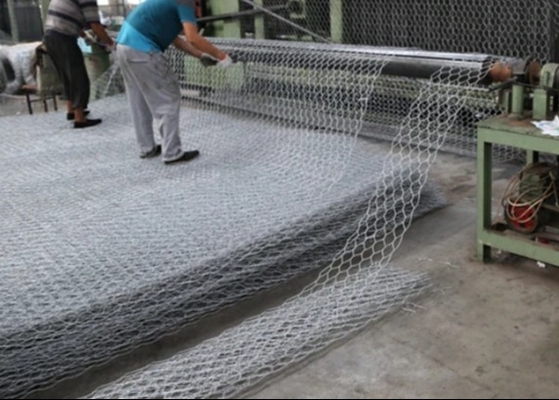

Weaving of Gabions:
Application
Control and guide of water or flood, Spillway dam or diversion dam, Preventing of rockfall, Preventing soil erosion, Bridge protection, Strengthening structure of soil, Protection engineering of seaside area.
Note: special specifications can be customized processing, but also according to the customer incoming sample custom
Uses:
1.Control and Guide rivers and floods
2.flood discharge dam and Diversion Dam
3. Rock Avalanche Protection Features: anti-corrosion, high strength, with ductility
| Mesh Size | Wire Thickness | Standard Box Dimensions (Length x Width X Height) |
Surface Treatment |
| 60 x 80mm | Ø2.7mm mesh wire Ø3.4mm selvage wire Ø2.0mm tie wire |
1 X 1 X 1m 1.5 x 1 x1m 2 x 1 x 0.5m 2 x 1 x 1m 3 x 1 x0.5m 3 X 1 X 1m 4 x 1 x0.5m 4 x 1x 1m 4 x 1.5 x 1m 4 x 2 x 1m |
HOT GALVANIZED / HOT DIPPED GALVANIZED / PVC COATED |
| 80 X 100mm | Ø3.0mm mesh wire Ø3.9mm selvage wire Ø2.0mm tie wire |
||
| 100 X 120mm | Ø2.7/3.7mm mesh wire Ø3.4/4.4mm selvage wire Ø2.2/3.2mm tie wire |
Gabion box are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
1.Gabion box materials: hot dipped galvanized wire or PVC coated galvanized wire , Galfan coated wire ( Zinc 95% + 5% Aluminum)
2..Gabion box Zinc coating : 225-275g/m2 according to EN 10224-2
3. Gabion box Steel according to EN 10218-2 ,Tensile strength between 380N/mm2 -- 500N/mm2, Elongation ≥ 12%
1. Material: Hot Dip Gal. /Electro Gal. /Black Iron Wire, PVC coat wire.
Stainless Steel Chicken Wire
PVC coat Chicken Wire,
Hot Dip Gal. Chicken Wire: Hot Dip Gal. after or before weaving
Electro Gal. Chicken Wire: Electro Gal. after or before weaving
2. Features: Chicken wire is also named Hexagonal Wire Mesh or Hexagonal Wire Netting; it has well erosion-resisting and rustproof properties.
3. Applications: Chicken Wire is extensively used in industrial and agricultural construction, building works, and all such made for the purpose of reinforcing and fencing as protective cage, guards for window and machinery safety isolation, floor screen reinforcement and poultry cage, fishing, garden and children's play-ground
4. Weaving Types: Straight Twisted, Reversed Twisted
5. Packing: moist-proof paper/pallet or loose packing
| Specification in Inch | Specification in Metric Unit | Wire Gauge (BWG) | Technical Note |
| 1/2" | 1.5CM | 22 | Max. roll width: 2m; Single or double edge |
| 24 | |||
| 3/4" | 2CM | 20 | Max. roll width: 2m; Single, double, or with reinforced edge for customer's choice |
| 22 | |||
| 24 | |||
| 5/8" | 1.8CM | 21 | Single or double edge |
| 23 | |||
| 25 | |||
| 1" | 2.5CM | 19 | Max. roll width: 2m; Normal and reverse twist |
| 21 | |||
| 23 | |||
| 1.25" | 3CM | 19 | Max. roll width: 2m; Normal and reverse twist |
| 21 | |||
| 1.5" | 4CM | 18 | Max. roll width: 2m |
| 20 | |||
| 22 | |||
| 2" | 5CM | 18 | Max. roll width: 2m |
| 20 | |||
| 22 |
Advantages of Gabions mesh
Environmentally acceptable - the use of local rock and soils for backfill is encouraged, with the subsequent growth of vegetative cover
Flexible - gabions are able to settle and move without failure, even on unstable soils
Economical - suitable stone is normally found on site or from a nearby quarry
The gabion basket has a high compressive resistance (rock) and tensile (mesh) strength
The gabion baskets allow the free passage of water through the structure, and weep holes are unnecessary
Vegetation can be incorporated within or over the gabion structures to blend in with the local environment
The integrity of a local ecosystem within a river is unaffected by gabions as they allow the free flow of water and growth of plants through their structure
With time the integrity and strength of gabion river protection is enhanced with the subsequent growth of plants and their root systems penetrating the porous gabion structure
