| Material: | Manganese Steel | Wire Diameter: | 6.0 Mm |
|---|---|---|---|
| Hole Shape: | Rectangle | Weaving Type: | Plain Weave |
| Technic: | Woven Mesh | Tensile Strength: | 800 - 1000 MPa |
| Highlight: | 0.7mm gi crimped wire mesh,carbon steel gi crimped wire mesh,20mm crimped woven wire mesh |
||

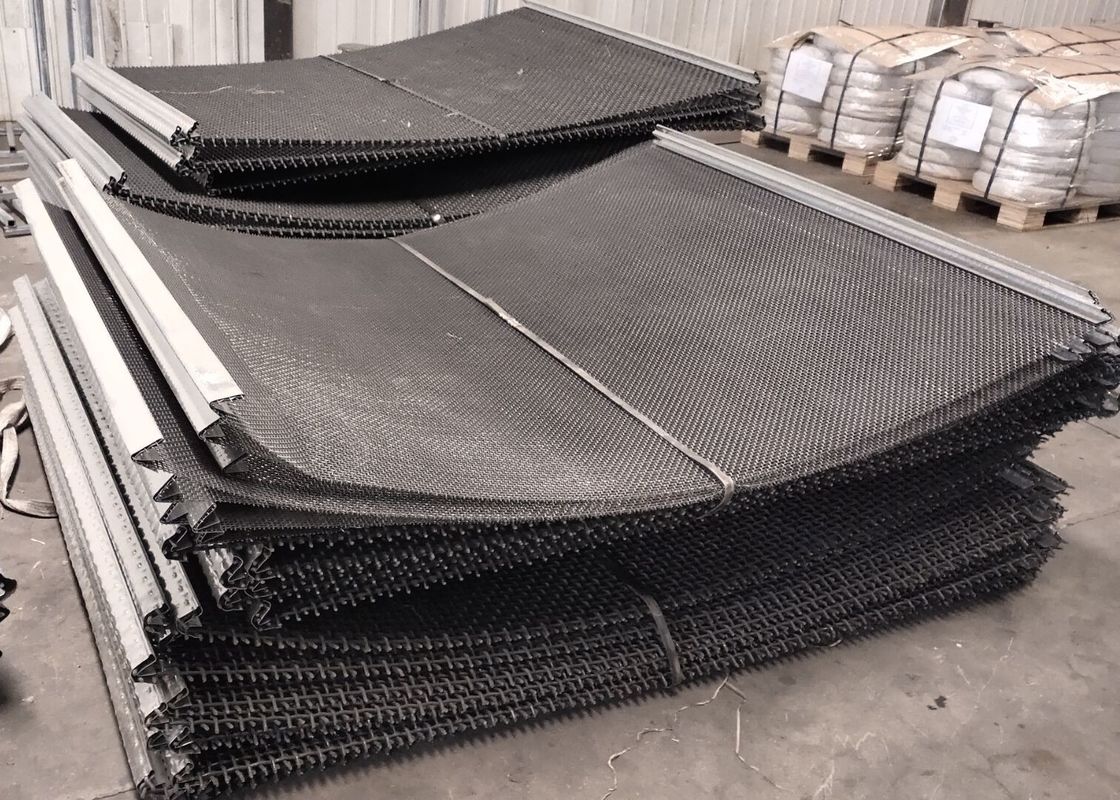

0.7 - 20mm 45# Medium Carbon Steel Crimped Mesh
Carbon steel wire screen can be used as screen deck in the vibrating screen,crusher screen,mining screen,quarrying screen and other machines.It is widely used in vibrating screen machines to filter and separate sands,gravel,coal,stones,rocks,chemical,rocks,iron,and other materials.
Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.
It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.
With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.
Carbon Steel Wire Screen
Material: high steel wire,45#, ,65Mn,high steel wire&Pu Material.
Advantage:1. High strength 2. High resistance 3. Accept customized variety size.
Feature:
Material: High tensile manganese steel.
Wire diameter: 1.5mm - 12.8mm.
Opening size: 2mm - 110mm.
Hole type: Square mesh, rectangular mesh.

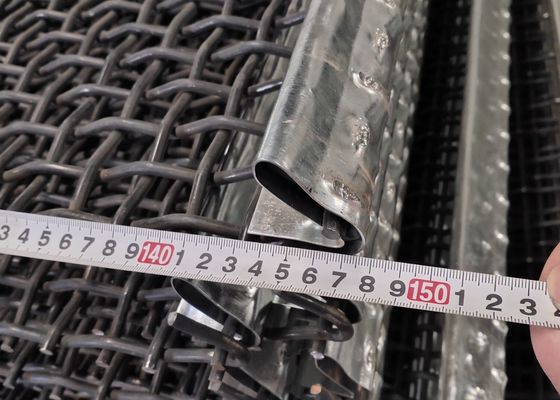

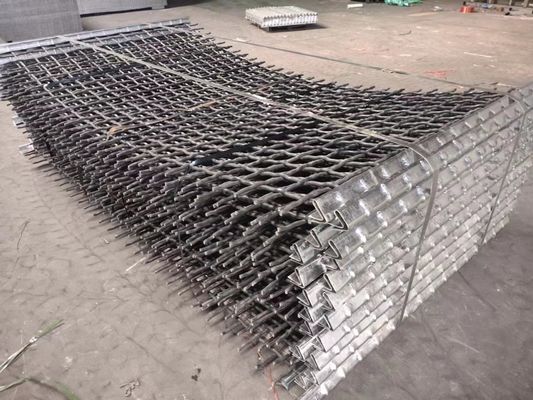

Hook type:Bending.Welding.Metal sheet hook. (C type or U type).
Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
Surface treatment: Galvanized before weave and galvanized after weave, painted
Application
The woven quarry screen mesh is widely used in the vibrating screens, crushers and trommel screens.
Woven quarry screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.
Technical Parameters of Carbon Steel Wire
| No. | Grade | Chemical Composition | Wire diameter | ||
| C | Si | Mn | mm | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.0-6.0 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | |
| 4 | 60 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.0-14.0 |
Technical Parameters of Stainless Steel Wire
| Grade | Chemical Composition(%) | |||
| C | Si | Mn | Cr | |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |
| 2207 | ≤0.03 | 6-8 | ≤1.2 | 24.0-26.0 |
| S / | WIRE DIA | OPEN SIZE | |
| 1 | 0.5 | 0.3 |
1200mmx1500mm to customer specified model specifications |
| 2 | 1 | 0.75 | |
| 3 | 1.5 | 1 | |
| 4 | 2 | 1.5 | |
| 5 | 3 | 2 | |
| 6 | 4.0mm | 2.5mm | |
| 7 | 5.0mm | 3mm | |
| 8 | 6.0mm | 3mm | |
| 9 | 7.00mm | 3mm | |
| 10 | 8.0mm | 3mm | |
| 11 | 9.0mm | 3.5mm | |
| 12 | 9.5mm | 3.5mm | |
| 13 | 10.mm | 4mm | |
| 14 | 11.0mm | 4mm | |
| 15 | 12.0mm | 4mm | |
| 16 | 12.5mm | 4mm | |
| 17 | 13.0mm | 4mm | |
| 18 | 14.0mm | 4mm | |
| 19 | 15.0mm | 4mm | |
| 20 | 16.mm | 4mm | |
| 21 | 17.mm | 4.5mm | |
| 22 | 18.mm | 5mm | |
| 23 | 19.mm | 5mm | |
| 24 | 20.0mm | 6mm | |
| 25 | 21.0mm | 6mm | |
| 26 | 22.0mm | 6mm | |
| 27 | 23.0mm | 6mm | |
| 28 | 24.0mm | 6mm | |
| 29 | 25.0mm | 6mm | |
| 30 | 26.0mm | 6mm | |
| 31 | 30.0mm | 6.5mm | |
| 32 | 32.0mm | 7mm | |
| 33 | 35.0mm | 7mm | |
| 34 | 38.0mm | 8mm | |
| 35 | 40.0mm | 8mm | |
| 36 | 45.0mm | 8mm | |
| 37 | 50.0mm | 8mm | |
| 38 | 55.0mm | 8mm | |
| 39 | 60.0mm | 8.5mm | |
| 40 | 65.0mm | 8.5mm | |
| 41 | 75.0mm | 9 mm | |
| 42 | 80.0mm | 9 mm | |
| 43 | 90.0mm | 9mm | |
| 44 | 100.0mm | 10mm |
