Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| Highlight: | 2.0mm mesh welded galvanized,Hot Dipped mesh welded galvanized,2.0mm galvanized welded wire mesh |
||

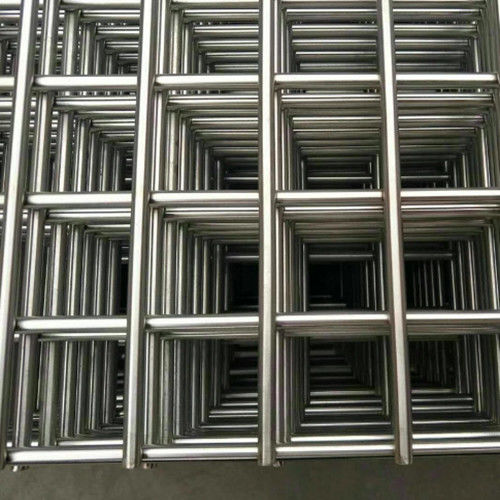

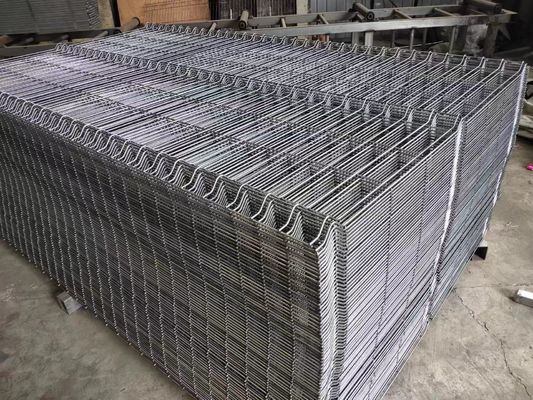

2.0mm 3.0mm 4.0mm Galvanized Welded Wire Mesh Panel Sheet for Bird Cage Metal Mesh Fence Panel
welded mesh panel is made of high-quality Q195 low-carbon steel wire, and then cold plating (electroplating), hot dipped, PVC coating and other surface passivation, plasticizing treatment, mesh surface leveling, uniform mesh, welding Strong point, good local machining performance, stability, anti-corrosion, good anti-corrosion grid-like wire mesh products. Galvanized (electro galvanized or hot-dip) is carried out after the welded mesh is formed; the product is made of high-quality galvanized iron wire through precise automatic mechanical welding.
welded mesh panel has the characteristics of firm solder joints, reasonable structure, uniform mesh, flat mesh surface, firm structure, strong integrity, and strong corrosion resistance. It can also be used as a special mesh for floor heating in the construction industry.
| Mesh Opening | Wire Diameter | Panel Width & Length | |
| ln MM | ln lnch | MM | |
| 12.7 mm | 1/2 Inch | 1.0mm - 2.0mm | 3 Feet * 6 Feet 4 Feet * 8 Feet 5 Feet * 10 Feet 1 m* 2 m 1.5 m * 3m 2 m * 4m |
| 25.4 mm | 1 lnch | 1.5mm - 3.5mm | |
| 31.8 mm | 1-1/4 Inch | 2.0mm - 4.0mm | |
| 38.1 mm | 1-1/2 Inch | 2.0mm - 5.0mm | |
| 50.8 mm | 2 Inch | 2.0mm - 6.0mm | |
| 76.2 mm | 3 lnch | 3.0mm - 7.0mm | |
| 101.6 mm | 4 lnch | 3.0mm - 8.0mm | |
| 127 mm | 5 lnch | 4.0mm - 9.0mm | |
| 152.4 mm | 6 Inch | 4.0mm - 10.0mm | |
| Surface Treatment | Hot Dipped Galvanized Welded Wire Mesh Panel | ||
| PVC Coating (Plastic Coating) Welded Wire Mesh Panel | |||
| Powder Coating Welded Wire Mesh Panel | |||
| Note: 1.Special sizes avaliable at request. 2.Packing:in plastic in rolls. Custom packing available at request. |
|||
| Hole Size | Wire diameter | Wide | |
| Inch | mm | ||
| 1/4"X1/4" | 6.4mmX6.4mm | 0.7mm | 0.3-2.5m |
| 1/4"X1/4" | 6.4mmX6.4mm | 1.2mm | 0.3-2.5m |
| 1/4"X1/2" | 6.4mmX12.7mm | 0.9mm | 0.3-2.5m |
| 1/4"X1" | 6.4mmX25.4mm | 1.2mm | 0.3-2.5m |
| 1/3"X1/3" | 8.5mmX8.5mm | 1.0mm | 0.3-2.5m |
| 1/3"X1/3" | 8.5mmX8.5mm | 1.2mm | 0.3-2.5m |
| 3/8"X3/8" | 9.5mmX9.5mm | 0.9mm | 0.3-2.5m |
| 3/8"X3/8" | 9.5mmX9.5mm | 1.0mm | 0.3-2.5m |
| 1/2"X1/2" | 12.7mmx12.7mm | 0.7mm | 0.3-2.5m |
| 1/2"X1/2" | 12.7mmx12.7mm | 2.0mm | 0.3-2.5m |
| 1/2"X1" | 12.7mmX25.4mm | 2.5mm | 0.3-2.5m |
| 3/4"X3/4" | 19mmX19mm | 1.0mm | 0.3-2.5m |
| 1"X1" | 25.4mmX25.4mm | 3.0mm | 0.3-2.5m |
| 2"X2" | 50mmX50mm | 3.0mm | 0.3-2.5m |
Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
Our advantage:Except the common size ,we also can make bigger wire diameter and small mesh size,for example:2.9mm wire diameter with 1inch mesh size,3mm wire diameter with 1cm mesh size. 3.2mm wire diameter with 1inch mesh size.
Usage: widely used in industry, farming, construction, transportation and mining for protection of structure, roof protection , safety segregation, keeping of poultry , like chicken cage, rabbit cage, and livestock, and decorations etc.
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country. The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice
