Product Details:
Payment & Shipping Terms:
|
| Function:: | Binding Wire | Wire Gauge:: | 0.7mm-4.0mm |
|---|---|---|---|
| Elongation:: | 10%-25% | Application:: | Woven Wire Mesh |
| Coil Weight:: | 1kg-1000kgs/coil | Material:: | Low Carbon Steel Wire |
| Tensile Strength:: | 30kg-70kg/mm2 | Packing:: | Plastic Inside |
| Highlight: | binding wire gauge,galvanized tie wire |
||
redrawing galvanized wire for hanger wire iron / steel / binding wire
Raw material: high quality low carbon wire
Standard wire gauge: 8#--34#
Wire diameter: 0.2mm-5.0mm
Tensile strengh: 350-450N/mm2
Zinc coating: 20-250g/mm2
Surface treatment: Electro galvanized iron wire ; Hot dipped galvanized iron wire
Hot dipped galvanized iron wire is made by Q195 low carbon steel wire . Main process is wire drawing , achid washing , rust removing , annealing , zinc coaing , coiling and packing . Mainly used in construction , handocraft , woven wire mesh , express way fencing mesh , packaging of products and other daily uses
| Galvanized wire, steel wire, annealed wire | |||
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
1. materials : Low Carbon steel wire /middle carbon steel wire .
2. Size Range
Wire Diameter: BWG 6 ---BWG36
3. zinc coating
from 15 g to 370 g.
Assortment: electro galvanized wire, hot dipped galvanized wire.
4.Tensile strength
30kgs----90kgs/mm2
5. Applications
- General purposes
- Chanlink fence production
- Barbed wire production
- Cable armouring wires
- Hose production
- Mesh production
- ASCR Core wire
--Wire hang
--binding wire6. Weight/coil/spool
- In coils , 1kg,2kgs,5kgs,8kgs,10kgs,25kgs,50kgs,100kgs,200kgs,1000kgs,etc
--in spools( plastic or steel spool) 4kgs, 10kgs,15kgs.
--in cartons. 10kgs, 25kgs,etc.
- other packing can be provide on request.
Production Process of Electro Galvanized Wire:
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.
is also known as electric galvanized iron wire or galvanized steel wire. We produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coils, spools, U type wire or straightened and cut into tie wire. Electric Galvanized Iron Wire we produce usually goes through standard processes under careful control from steel rod coil, wire drawing, annealing, rust removing, acid washing, boiling, drying, zinc feeding to wire coiling.
Production Process of Electro Galvanized Iron Wire:
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.
is also known as electric galvanized iron wire or galvanized steel wire. We produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coils, spools, U type wire or straightened and cut into tie wire. Electric Galvanized Iron Wire we produce usually goes through standard processes under careful control from steel rod coil, wire drawing, annealing, rust removing, acid washing, boiling, drying, zinc feeding to wire coiling.

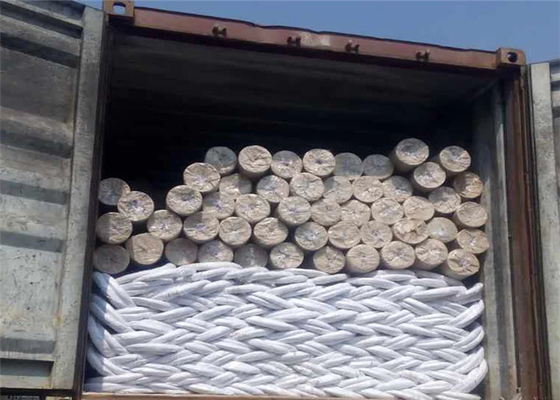

1) plastic film inside, plastic woven strips outside with label.

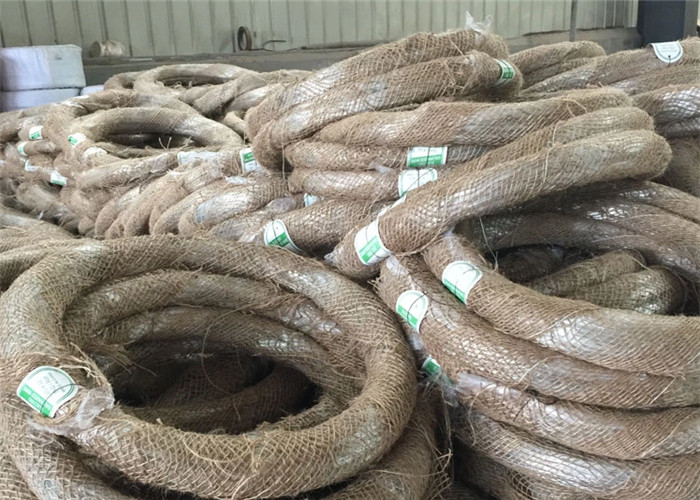

2) plastic film inside, hessian cloth outside with label.
