Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire | Mesh Opening: | 12 × 12, 20 × 20, 25 × 25, 12 × 25mm |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 1.5mm | Roll Width: | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m |
| Roll Length: | 15M,30M,50M Ect | Surface Treatment: | Pvc Coated Or Galvanized |
| Highlight: | welded wire panels,welded wire fabric |
||

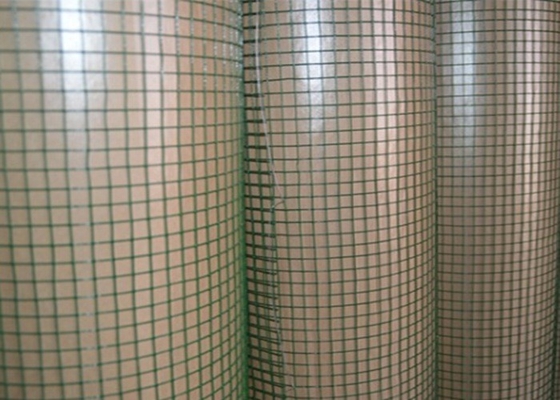

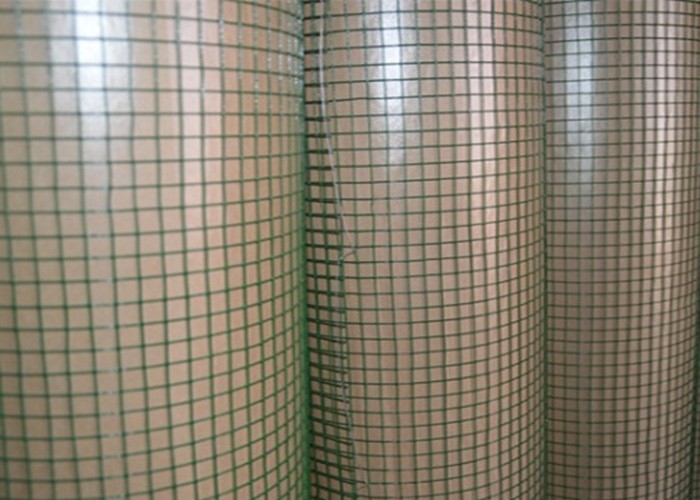

1/2 Inch PVC Plastic Coated Galvanized Zinc Coated Wall Plastering Welded Wire Mesh
Product Description:
(1) Materials:High quality low carbon steel wire,stainless steel wire,galvanized wire
(2) Wire daimeter:BWG21,BWG22,BWG23,BWG24,0.5mm,0.6mm,0.7mm,0.8mm
(3) Mesh Opening:1/4 inch,6.4mm
(4) Finishing:Hot dipped galvanized steel wire mesh and electro galvanized steelwire mesh,welded stainless steel mesh
(5) Width:0.5m-1.5m;Length:10-30 meters
(6) Packing:in rolls wrapped by plastic paper.
(7) MOQ:100 ROLLS
(8) Delivery:within 25 days
(9) Payments:30% T/T in advance and the balance against the copy of B/L. Or letter of credits.
Surface Treatment:
1. PVC plastic coated:is generally coated after weld. We can supply colors of green,blue,red,white ect.
2. Galvanized zinc coated:divided to electric and hot dipped galvanized after weld as well. The hot dipped galvanized coated has much more cost and higher quality.
3. Stainless steel:is not need to do any surface treatment but with the highest quality and cost.
Stainless steel PVC coated Galvanized coated
Specifications of plastering welded wire mesh:
| Mesh size(mm) | Wire diameter(mm) | Roll width | Roll length |
| 10x10 | 0.4, 0.5, 0.55, 0.65, 0.7, 0.8, 0.9 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 12x12 | 0.5, 0.6, 0.8, 0.9 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 14x14 | 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 16x16 | 0.9, 1.0, 1.2 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 20x20 | 0.8, 0.9, 1.0. 1.2 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 20x12.5 | 0.8, 0.9, 1.0. 1.2, 1.3 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 25x25 | 0.8, 0.9, 1.0. 1.2, 1.3, 1.4 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 50x20 | 0.8, 0.9, 1.0. 1.2, 1.3, 1.4, 1.5 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
| 50x50 | 0.8, 0.9, 1.0. 1.2, 1.3, 1.4, 1.5 | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m | >15m |
Note: We can also customize for your required size.
Common Applications for Welded Wire Mesh:
1. for plastering wall mesh
2. for fencing,screen,gabion and baskets
3. for detention,guarding and security
Feature of plastering welded wire mesh:
1. esaily cut to fit and workable
2. lightweight and easy to install
3. extremely versatile
4. resistance to corrosion and long service life
5. wide scope of using
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
